Product Details:
Payment & Shipping Terms:
|
| Air Pressure: | 0.6-2.4Mpa | Maximum Depth: | 100m |
|---|---|---|---|
| Feed Force: | 0~80KN | Feed Velocity: | 0~12M/min |
| Highlight: | raise boring drilling,raise boring equipment |
||

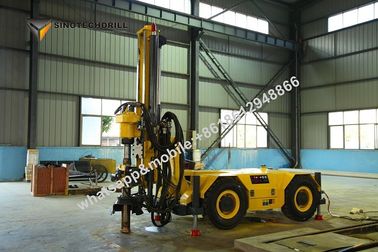

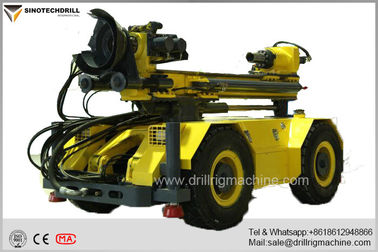

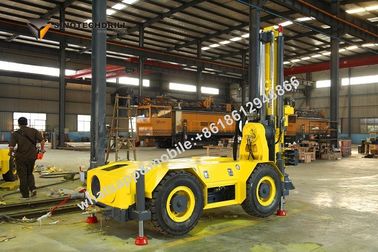

Four wheel mounted dust collector 100m underground DTH drill rig machine
Description:
STD-UMD series underground drills are new generation of digital drill products for the requirement of modern mining technology according to combining conventional experience has used on similar drilling rig with advanced hydraulic and program-controlled technology. They are preferred equipment for large diameter long-hole mining method because of their compact structure, safety, efficiency, high reliability, durability, comfortable operation, and convenient maintenance.
Function Characteristics:
The hydraulic systems that adopt the technology of load sensing control, multiple filtering and the proportional solenoid control are characterized by saving energy and efficiency, high intelligent degree, strong anti-pollution capability and high stability and reliability.The underground drills have been installed RCS2.0 intelligent control system with safety protection, automatic operation, fault detection, data storage, internet communications, digital display and other functions, (see specification of RCS2.0 intelligent control system).
Three operation modes:
The operator can select manual operation mode , wire-control operation mode or wireless operation mode according to your need .
Shape dimension:
|
STD-UMD4 |
STD-UMD4S |
STD-UMD6 |
STD-UMD6S |
|
| Hmax (mm) | 3060 | 2560 | 3060 | 2560 |
| Hmin (mm) | 4480 | 3580 | 4480 | 3580 |
| Weight (kg) | 4800 | 4600 | 5000 |
4800 |
RCS Intelligent control system
The CY-UMD series underground drills have been installed RCS inteligent control system with safety protection, automatic operation, fault detection, data storage, internet communication, digital display and other functions
Performance parameter:
| Unite | STD-UMD4(S) | STD-UMD6(S) | ||
|
Operation |
Air pressure | Mpa | 0.6~2.4 | 0.6~2.4 |
| Maximum diameter | mm | 76~127 | 105~165 | |
| Maximum depth | m | 100 | 100 | |
| Drill angle from horizontal | ° | -10~99 | -10~99 | |
|
Propulsion |
Feed force | KN | 0~80 | 0~80 |
| Lifting force | KN | 0~80 | 0~80 | |
| Feed velocity | m/min | 0~12 | 0~12 | |
| Feed distance | mm | 1660/1160 | 1660/1160 | |
|
Rotation |
Clockwise torque | kNm | 0~3300 | 0~3900 |
| Anticlockwise torque | kNm | 0~4900 | 0~5100 | |
| Rotation velocity | r/min | 0~43 | 0~36 | |
|
Travel |
Tractive force | kN | 37/22 | 37/22 |
| Travelling speed | Km/h | 2.5/1.6 | 4.0/2.5 | |
| Gradeability | ° | 25 | 25 | |
| Height from the ground | mm | 250 | 250 | |
|
Power |
Voltage | v | AC380 | AC380 |
| Motor power | kw | 18.5 | 22 | |
| Motor rotation velocity | r/min | 1470 | 1470 | |
